The male dowel machine creates strong and precise dowel joints between wooden pieces. Thanks to its precise slide structure and high-speed spindle design, it ensures smooth and clean surfaces on the workpiece. Its design, suitable for mass production, speeds up the operator's workflow while maximizing production capacity.
| Products | Product Features |
|---|---|
| Control Unit | FESTO |
| Maximum Width (H) | 150 mm |
| Maximum Height (L) | 90 mm |
| Maximum Depth | 50 mm |
| X Axis Speed | 30,000 mm/min |
| Y Axis Speed | 30,000 mm/min |
| X Axis Motor | 1 kW absolute encoder servo |
| Y Axis Motor | 0.75 kW absolute encoder servo |
| Spindle Motor | HERTZ · 5.5 kW · 18,000 rpm · ER32 |
| Maximum Weight | 750 kg |
| Operating Power | 7.5 kW |
| Pneumatic System | FESTO |
| Linear Motion System | PMI |
| Lubrication | IST |

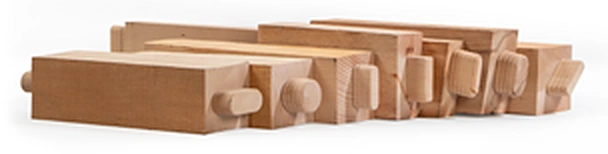

Sample joint pieces machined on the tenoner.
Contact us for pricing, delivery and installation details.
