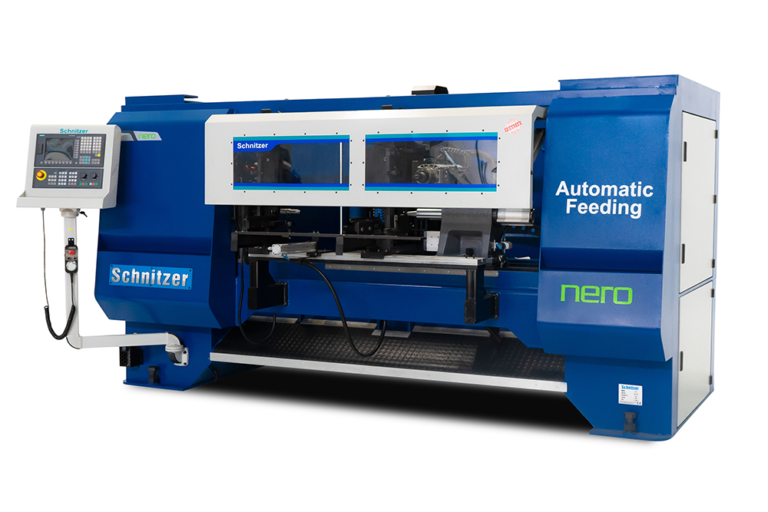

4 Axis Auto Loading Wood Lathe Machine

4 Axis Auto Loading Wood Lathe Machine

Specifications

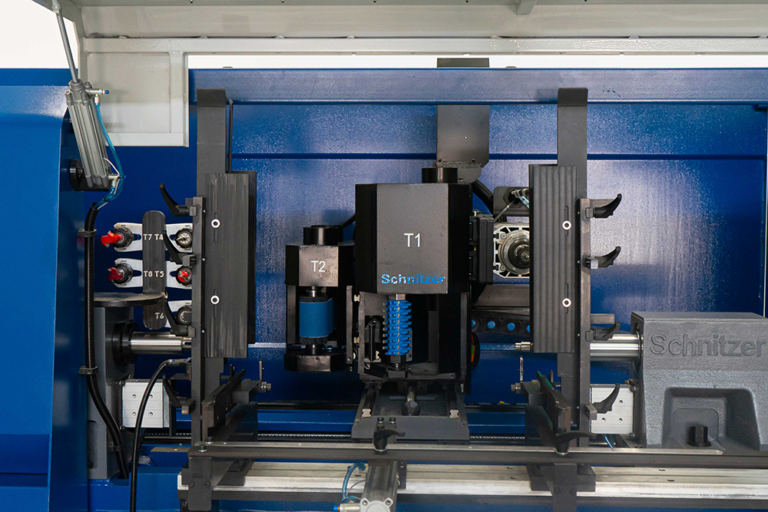

4 Unit:
1. Unit : Debarker
2. Unit : V Knife
3. Unit :Milling
4. Unit : Sanding

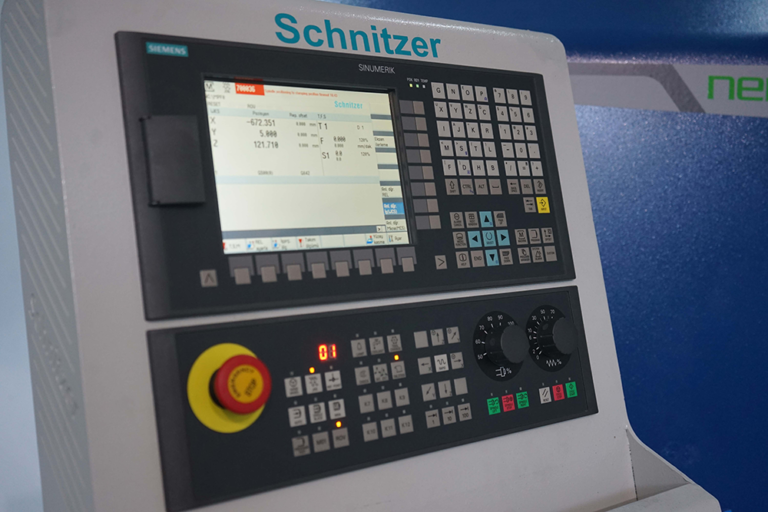

Siemens control unit
Maximum square : 160 x 160 mm (Auto Loading  100×100 mm)
Maximum Length: 1200 mm
Long axis speed : 70 m/min.
Short axis speed : 40 m/min.
Y Axis : 30 m/min.
Working Power : 22 kW
X Axis : 1,5 kW. Absolute Encoder Servo Motor (Siemens)
Z Axis : 1 kW Absolute Encoder Servo Motor (Siemens)
Y Axis: 0,75 kW Absolute Encoder Servo Motor (Siemens)
A Axis: 3,7 kW 6000 devir Servo Spindle motor (Siemens)

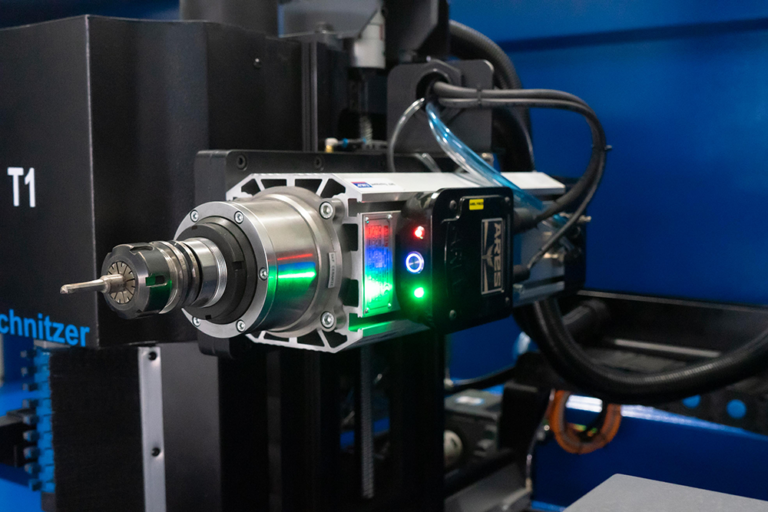

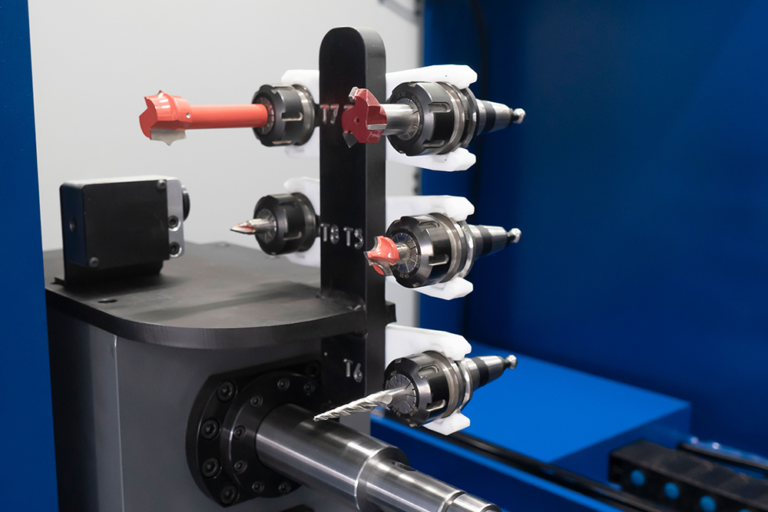

Automatic tool changer milling: (Arel 4 Kw 18000 RPM)
Weight : 3100 kg
Workpiece centering : Pneumatic
Linear movement system : PMI
Clamping workpiece : Pneumatik

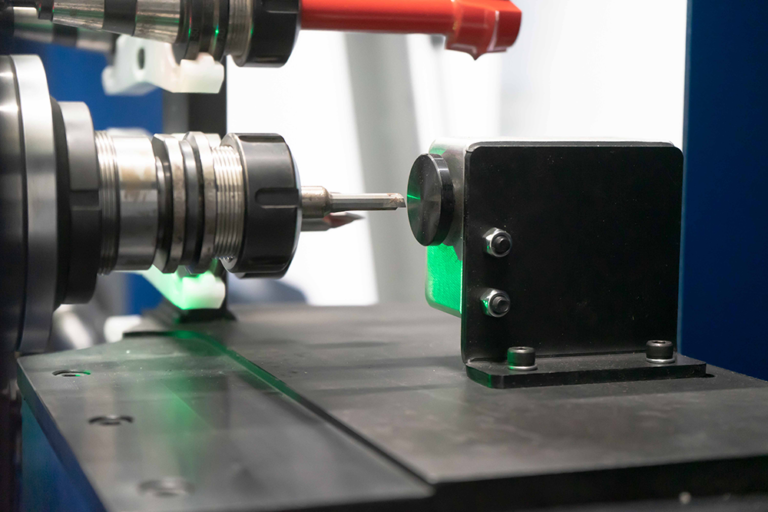

Centering Part
Automatic Centering
Automaric Lubrication
Hand Wheel
