Specifications
2 Axis:
1.Axis: Round Knife
2. Axis: V lnife

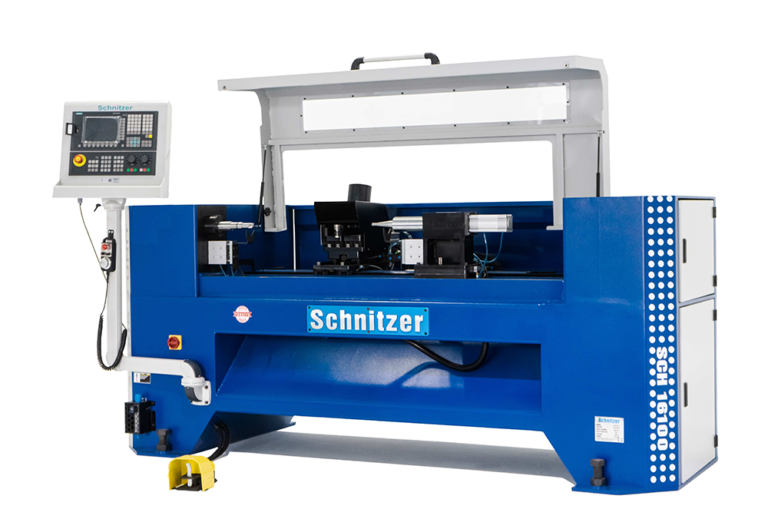

Superior Specifications of 2 Axis 2 Unit Wood Lathe Machine

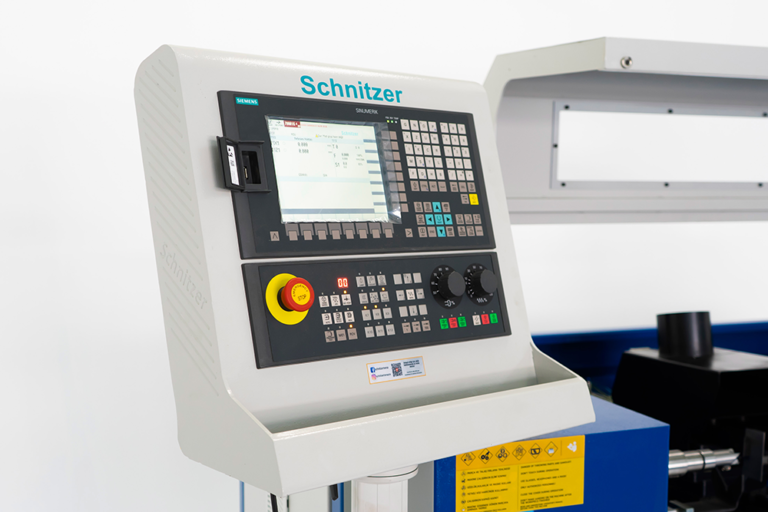

Siemens control unit
Maximum square :160 X 160 mm
Maximum length: 1000 mm
Long axis speed : 96 m/min.
Short axis speed : 15 m/min.
Working power : 6 Kw
X Axis: 0,75 kW. Servo Motor (Siemens)
Z Axis: 1 kW Servo Motor (Siemens)
Spindle : 4 kW 5000 rpm asynchronous motor
Weight: 1500 kg
Work piece centering : Pneumatic
Linear movement System : PMI
Clamping piece: Pneumatic
Centering Section
Auto Centering

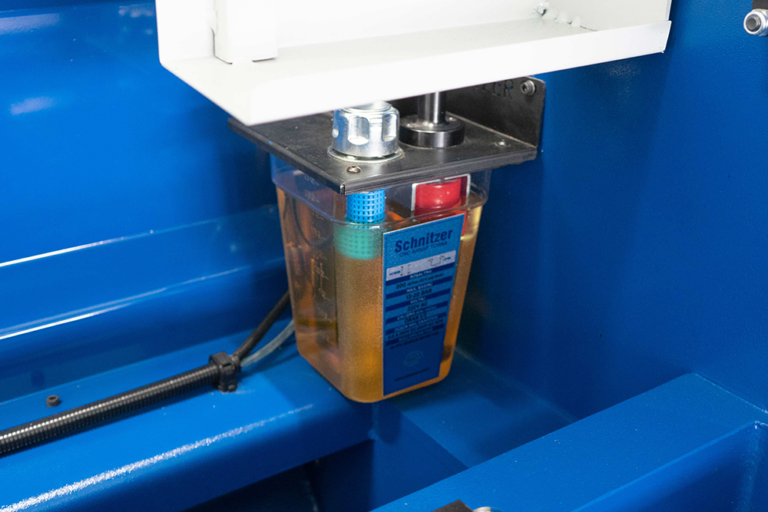

Auto Lubrication
Hand Wheel
