Specifications

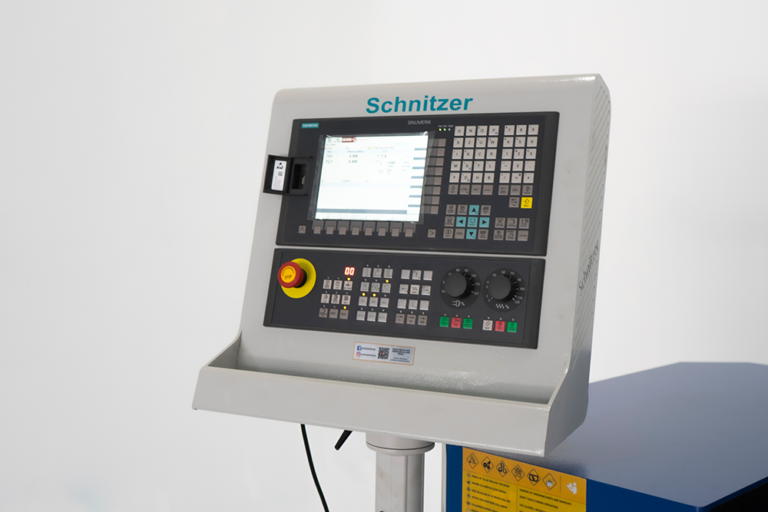

Siemens control unit
Maximum square : 120 X 120 mm
Maximum length : 1000 mm
Long axis speed : 96 m/min.
Short axis speed : 15 m/min.
Working power : 6 kW
X Axis : 0,75 kW. Servo Motor (Siemens)
Z Axis : 1 kW Servo Motor (Siemens)
Spindle : 4 kW 5000 RPM asynchronous motor
Weight: 1650 kg
Work piece centering : Pneumatic
Linear movement system: PMI
Work piece clamping : Pneumatic
Autımatic Lubrication
Hand Wheel
